The Recora Sensi-Switch® Edgeguard is a rugged, touch-sensitive safety switch molded into a durable urethane strip. Ideal for conveyors, machinery, and hazardous work zones, the Sensi-Switch activates with just 3–5 lbs. of pressure anywhere along its length—providing full-contact protection for high-risk operations.
Add to Quote Cart to receive your part number.
CONTACT FOR CUSTOM SOLUTIONS DOWNLOAD PDF DRAWINGS- *
- *
- *
Recora Sensi-Switch® Edgeguard
When harsh environments demand a fast, hands-free emergency shutdown or activation method, the Recora Sensi-Switch® Edgeguard delivers. This rugged, touch-activated safety switch is molded from weather-resistant urethane and designed to respond with just 3–5 lbs. of pressure anywhere along its length—eliminating dead zones and maximizing protection.
Built for Hazardous Zones
Sensi-Switch is ideal for conveyors, lift tables, machine perimeters, and assembly lines—anywhere you need reliable shutdown or signaling without requiring precise foot or hand placement. Stainless steel contacts are embedded inside the sealed strip, eliminating exposure to moisture or debris. Whether indoors or out, the Sensi-Switch provides reliable performance in all industrial conditions.
Key Features
- Activates with just 3–5 lbs. of pressure—no dead zones
- Fully molded 1" wide urethane strip with ½" radius
- Corrosion-resistant stainless steel internal contacts
- Weather-resistant for indoor or outdoor use
- Custom lead lengths and configurations available
Technical Specifications
- Standard Thickness: ½"
- Standard Lead: 2' of 18 AWG, 2-conductor wire
- Optional Lead: Up to 100' length or 4-conductor wire
- Sensitivity: 3–5 lbs. (custom sensitivities available)

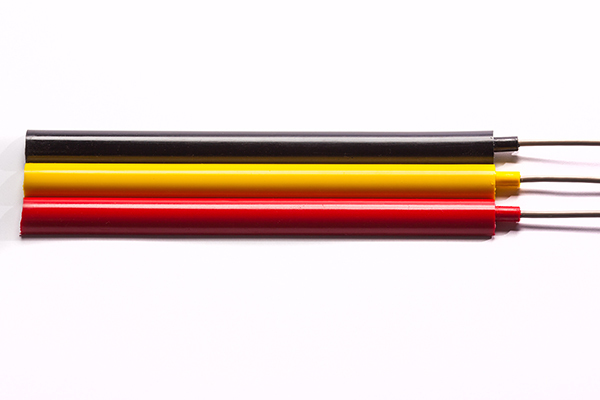

- Color Options: Black, Yellow, Red
Available Configurations
| Series | Description | Length | Lead | Wiring | Color Options |
|---|
| T | Sensi-Switch | 12" (1" × 12") | 2' Lead (2C) | 2 Wire Presence Detection | Black |
| TN | Sensi-Switch with T-Nuts | 24" (1" × 24") | Custom Lead (4C) | 4 Wire Safety (2 two-wire leads) | Yellow |
| Additional lengths available up to 120" upon request |
